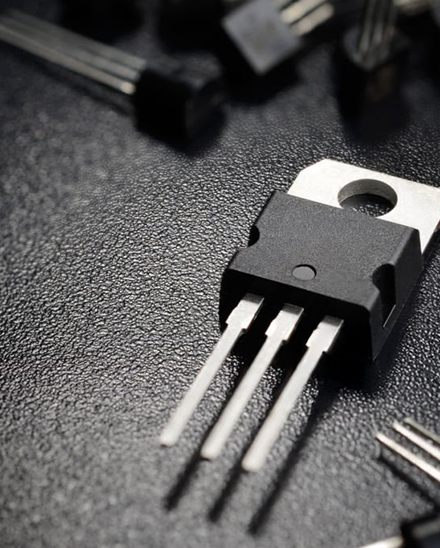

What Is a Transistor?
A transistor is a fundamental semiconductor device used to amplify or switch electronic signals. It’s the building block of modern electronics—found in everything from smartphones and computers to industrial machinery and automotive systems.
Transistors are made from materials like silicon or germanium, which are treated with impurities to create regions called p-type and n-type. These regions form a p-n junction, allowing the transistor to control the flow of electrical current with precision.
How Transistors Work
Transistors typically have three terminals:
Emitter – Releases electrons into the device
Base – Controls the flow of electrons
Collector – Receives electrons from the emitter
Depending on the voltage applied to the base, the transistor either allows or blocks current between the emitter and collector. This makes it act like:
A switch – Turning current on or off
An amplifier – Boosting weak signals into stronger ones
Transistor Types & Specifications
| Transistor Type | Voltage Range | Current Range | Polarity | Key Specs | Applications |
|---|---|---|---|---|---|
| NPN Bipolar Junction (BJT) | 20V – 1,000V | 0.1A – 50A | NPN | Gain (hFE), V<sub>CE(sat)</sub>, f<sub>T</sub> | Amplification, switching, motor drivers, power control |
| PNP Bipolar Junction (BJT) | 20V – 1,000V | 0.1A – 50A | PNP | Similar to NPN | Complementary switching, analog circuits |
| N-Channel MOSFET | 20V – 1,200V | 0.5A – 100A | N-Channel | V<sub>GS(th)</sub>, R<sub>DS(on)</sub>, Q<sub>g</sub> | High-speed switching, power supplies, motor control |
| P-Channel MOSFET | 20V – 600V | 0.5A – 30A | P-Channel | Similar to N-Channel | Low-side switching, battery protection |
| IGBT (Insulated Gate Bipolar) | 300V – 1,800V | 10A – 600A | NPN-like | V<sub>CE(sat)</sub>, switching speed | High-voltage motor drives, inverters, industrial power systems |
| JFET (Junction FET) | 15V – 50V | 10mA – 500mA | N- or P-Channel | V<sub>GS(off)</sub>, I<sub>DSS</sub> | Analog signal control, low-noise amplifiers |
| Darlington Transistor | 30V – 100V | 0.5A – 20A | NPN or PNP | High gain, slow switching | High-current switching, relay drivers |
| Phototransistor | 5V – 30V | 1mA – 100mA | NPN or PNP | Light sensitivity, response time | Light detection, opto-isolators, sensors |
| Unijunction Transistor (UJT) | 10V – 30V | 1mA – 100mA | N-type | Peak-point voltage, intrinsic stand-off | Oscillators, triggering circuits |
Why It Matters for Export
Transistors are essential for signal processing, voltage regulation, and logic control. Their performance and reliability directly impact the efficiency of electronic systems. At Flex Innovative Enterprise, we supply transistors that meet global standards—ensuring your designs are powered by precision and durability.
